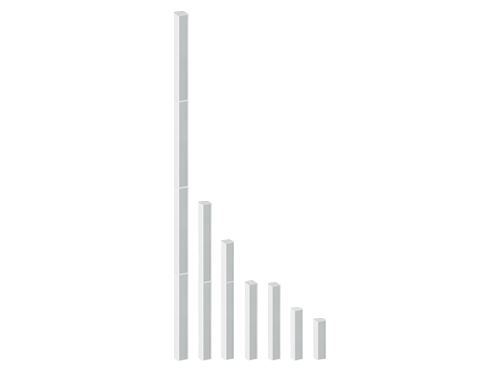

Side-Lobe-Free Steerable Digital Line Array

MESSENGER G2

  • - Specially designed for high quality speech and background music applications in reverberant acoustic environments
  • - Consistently high sound quality across the coverage area
  • - Variable vertical dispersion controllable
  • - Variable acoustic center

  • Side-Lobe-Free Steerable Digital Line Array (0)
  • Side-Lobe-Free Steerable Digital Line Array (1)

The MESSENGER G2 is a range of steerable Line Array that are designed to meet the current and future demands for the Voice Alarm industry, Commercial Audio and Pro-sound.

The MESSENGER G2 series has a unique feature, which has great installation and application benefits. These Line Array columns have been specially designed for high quality speech and background music applications in reverberant acoustic environments where it is difficult to meet contractual speech intelligibility requirements.

These columns are equipped with two floating line inputs, speech and background music. This results in better music and speech performance in situations where high quality music performance and superior speech intelligibility are demanded.





  • Triple-lobe feature for the ultimate accuracy in lobe design
  • Beam steering +/- 45 degrees
  • Specially designed for high quality speech and background music applications in reverberant acoustic environments
  • Variable vertical dispersion controllable environments
  • Variable acoustic center in 9 steps (from asymmetrical to symmetrical)
  • The asymmetrical lobe has the ability to keep the sound deviation within 3 dB from 5 m to 100 m
  • Integrated DSP controls with 8 band parametric EQ, noise gate, delay rooms, peak limiter
  • VOX-control on priority input and ambient noise sensing function
  • 24 VDC input for battery backup, 20 kHz input surveillance
  • Internal HF carrier loudspeaker surveillance ambient noise sensor, temperature sensor with frost protection
  • Ease DLL & CATT DLL, for advanced room acoustic simulation
  • Audio and data transmission via Ethernet for detailed status report

Models:

  • MESSENGER-M G2 : 12 loudspeakers - 1700 mm, 94 dB to 25 m
  • MESSENGER-L G2: 18 loudspeakers - 2400 mm, 94 dB to 30 m
  • MESSENGER-XL G2 : 24 loudspeakers - 3100 mm, 94 dB to 40 m
  • MESSENGER-2L G2 : 36 loudspeakers - 4700 mm, 94 dB to 60 m
  • MESSENGER-2XLG2 : 48 loudspeakers - 6200 mm, 94 dB to 70 m


Electrical

  • AC power input: 210 - 230 VAC (5% - 10%)
  • Power consumption (AC)
    • MESSENGER-M G2: 211 W
    • MESSENGER-L G2: 277 W
    • MESSENGER-XL G2: 343 W
    • MESSENGER-2L G2: 54 W
    • MESSENGER-2XL G2: 686 W
  • DC power input: 16 VDC - 27 VDC
  • Power consumption (VDC)
    • MESSENGER-M G2: 201 W
    • MESSENGER-L G2: 263 W
    • MESSENGER-XL G2: 326 W
    • MESSENGER-2L G2: 526 W
    • MESSENGER-2XL G2: 653 W

    Audio

    • A/D-D/A bit resolution: 24 bit
    • Sampling rate: 48 kHz
    • Internal processing: 32 bit (floating points)
    • Frequency response: 100 - 22 kHz
    • Max. SPL: 93 dBa +/- 1 dB
    • Max. input/output level: 18 dBu
    • Input impedance (balanced): 10 k Ohms
    • Output impedance (balanced): 90 Ohms

    Mechanical

    • Coverage angle
      • Vertical: 5, 7, 10, 15, 20, 25, 30, 35, 40, 45 degree
      • Horizontal: 145 degree (for all units)
      • Lobe shaping (centered on driver): 1, 4, 6, 9, 13, 16, 19, 21, 24
      • Lobe steering: -45° to 0° to 45°
      • Speaker type: 4.25'' (dual-cone with inverted surround, weatherproof, aluminium)
    • IP rating: IP40
    • Dimensions
      • MESSENGER-M G2: 12 loudspeakers / 1700 mm
      • MESSENGER-L G2: 18 loudspeakers / 2400 mm
      • MESSENGER-XL G2: 24 loudspeakers / 3100 mm
      • MESSENGER-2L G2: 36 loudspeakers / 4700 mm
      • MESSENGER-2XL G2: 48 loudspeakers / 6200 mm
    • Mounting: 1 set of wall bracket
    • Colour: White, RAL9016



    • House of worship
    • Train stations
    • Shopping centers
    • Stadiums
    • Airports
    • Halls
    • ...
