The VX series from the PENTON PRO line are high-performance 2-way passive point source loudspeakers, delivering exceptional clarity, durability, and versatile mounting options for a wide range of professional audio installations.
Designed for demanding audio applications, the VX6/8/10/12 models combine ultra-low harmonic distortion with high-efficiency components to ensure clear, dynamic, and natural sound reproduction. Each loudspeaker features a high-sensitivity low-frequency driver (6”, 8”, 10”, or 12”) paired with a 1” or 1.5” compression driver on constant directivity horns, guaranteeing consistent coverage and accurate phase response through passive crossovers with air-core inductors.
Robust enclosures built from multi-layer plywood are coated with impact- and water-resistant paint, complemented by a durable metal grille and acoustically transparent foam for long-lasting reliability. With integrated M8 mounting inserts and a 35 mm pole socket, the VX series is equally suited for both fixed installations and mobile setups.

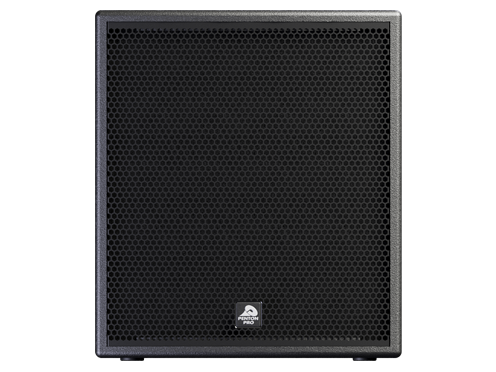

For extended low-frequency reinforcement, all VX loudspeakers can be seamlessly paired with the VX15B subwoofer.
- Point source loudspeaker design
- High-performance installation
- Compact, lightweight design – easy to install in fixed or mobile setups
- Wide frequency response – clear voice and dynamic music reproduction
- Robust multi-layer plywood enclosure with impact- and water-resistant paint
- Flexible mounting options – M8 inserts and 35 mm pole mount socket
- Recommended amplifier power:
- VX6: 150–250 W @ 8 Ω
- VX8: 250–400 W @ 8 Ω
- VX10: 400–650 W @ 8 Ω
- VX12: 500–850 W @ 8 Ω
VX6
- Components: 6"/1"
- Coverage: 100°
- Frequency Range (-3 dB): 105–22000 Hz
- Frequency Range (-6 dB): 100–22000 Hz
- Max SPL @ 1 m: 121 dB
- Harmonic Distortion (Rated Power): <1%
- Harmonic Distortion (Max Power): <4%
- Impedance: 8 Ω
- Rated Power: 150 W
- Peak Power (10 ms): 250 W
- Connectors: 1 × NL4, 1 × Phoenix 4-pin
- Dimensions (W × H × D): 215 × 330 × 205 mm
- Weight: 5.15 kg
- Colour: Black
VX8
- Components: 8"/1.5"
- Coverage: 80 × 50° or 50 × 80° (rotatable horn)
- Frequency Range (-3 dB): 105–22000 Hz
- Frequency Range (-6 dB): 100–22000 Hz
- Max SPL @ 1 m: 125 dB
- Harmonic Distortion (Rated Power): <1%
- Harmonic Distortion (Max Power): <4%
- Impedance: 8 Ω
- Rated Power: 250 W
- Peak Power (10 ms): 400 W
- Connectors: 1 × NL4, 1 × Phoenix 4-pin
- Dimensions (W × H × D): 255 × 458 × 246 mm
- Weight: 9.75 kg
- Colour: Black
VX10
- Components: 10"/1.5"
- Coverage: 80 × 50° or 50 × 80° (rotatable horn)
- Frequency Range (-3 dB): 100–22000 Hz
- Frequency Range (-6 dB): 90–22000 Hz
- Max SPL @ 1 m: 129 dB
- Harmonic Distortion (Rated Power): <1%
- Harmonic Distortion (Max Power): <5%
- Impedance: 8 Ω
- Rated Power: 400 W
- Peak Power (10 ms): 650 W
- Connectors: 1 × NL4, 1 × Phoenix 4-pin
- Dimensions (W × H × D): 311 × 530 × 291 mm
- Weight: 14.5 kg
- Colour: Black
VX12
- Components: 12"/1.5"
- Coverage: 80 × 50° or 50 × 80° (rotatable horn)
- Frequency Range (-3 dB): 90–22000 Hz
- Frequency Range (-6 dB): 46–22000 Hz
- Max SPL @ 1 m: 132 dB
- Harmonic Distortion (Rated Power): <0.7%
- Harmonic Distortion (Max Power): <1.6%
- Impedance: 8 Ω
- Rated Power: 500 W
- Peak Power (10 ms): 850 W
- Connectors: 1 × NL4, 1 × Phoenix 4-pin
- Dimensions (W × H × D): 360 × 616 × 352 mm
- Weight: 18.8 kg
- Colour: Black
- Clubs and nightlife venues
- Concert halls and theatres
- Conference rooms and auditoriums
- Fitness centers and sports facilities
- ...
