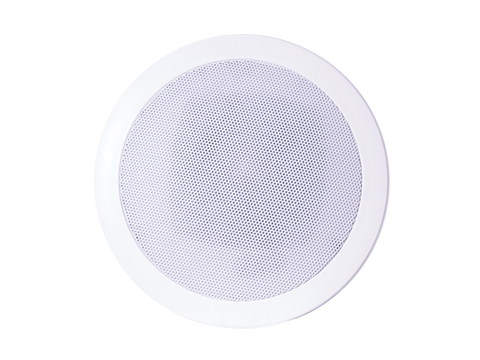

The PCL Series of ceiling loudspeakers are manufactured in high grade white ABS plastic compound, UL, VO yellow card approved, with aluminum, epoxy powder coated grille. This Combination of materials offers a cost effective alternative to our RCS range, whilst still maintaining its stylish design but with the added benefit of being weather resistant.
Supplied with a dual cone drive unit, giving a wider frequency range than the standard single cone, making the PCL range more suitable for use in applications where background music is a primary requirement.
Manufactured and tested to a high standard in accordance with BS6840, these units can be treated for use in damp humid environments or facilities where the units need to be frequently wiped clean.
Electrical
- Rated power, Watts: 6
- Tappings 100 volt line, Watts: 6/3/1.5/0.75/0.25
- Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
- Tappings 70.7 volt line, Watts: 3/1.5/0.75/0.375/0.125
- Driver impedance, Ohms: 8
- Effective frequency range, Hz (BSEN60268-5): 85-18.5K
- S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 82
- S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 90
- Dispersion at 1k/2k Hz, Degrees: 180/120
Environmental
- IP-Rating: 21
- Max/Min Amb Temp: -25°C/+70°C
- Relative Humidity: ≤60%
Mechanical
- Dimensions, mm: Ø234
- Net Weight, Kg: 0.9
- Color (Unless Specified): White, RAL9016
- Material: Plastic Baffle ABS with UV inhibitors,
- Metal driver chassis & grille
- Mounting: Rotary compression clamps
- Cut-out, mm: Ø194
- Hotels
- Bars
- Restaurants
- Retails
- Offices
- Administrations
- Train stations
- ...
Type: [PDF]
Filename: Loudspeakers_Catalogue
Type: [PDF]
Filename: PCL5/T_Datasheet
Type: [PDF]
Filename: PCL6/T_Datasheet
Type: [PDF]
Filename: Catalogue_Haut-parleurs
Type: [PDF]
Filename: PCL5/T_Fiche produit
Type: [PDF]
Filename: PCL6/T_Fiche produit
Type: [PDF]
Filename: Lautsprecher_katalog
Type: [PDF]
Filename: PCL6/T_Datenblatt
Type: [PDF]
Filename: PCL5/T_Datenblatt
Type: [PDF]
Filename: Katalog Zvučnika
Model name
Power Rating Watts
Effective Frequency Range Hz
S.P.L. @ 1 m, 1 Watt dB
S.P.L. @ 1 m, Full Power dB
Cut Out mm
Model name: PCL5/T
Power Rating Watts: 6W / 100V
Effective Frequency Range Hz: 100 - 17.500
S.P.L. @ 1 m, 1 Watt dB: 83
S.P.L. @ 1 m, Full Power dB: 91
Cut Out mm: 168
Model name: PCL6/T
Power Rating Watts: 6W / 100V
Effective Frequency Range Hz: 85 - 18.500
S.P.L. @ 1 m, 1 Watt dB: 82
S.P.L. @ 1 m, Full Power dB: 90
Cut Out mm: 194
