TERRAManager Control Software

More information »

Integrated GUI Control Software

TerraManager

  • - Graphical User Interface
  • - Compatible with IDA8, BOUTIQUE, EVCS and TERRACOM systems
  • - Flexible Windows based platform
  • Integrated GUI Control Software (0)

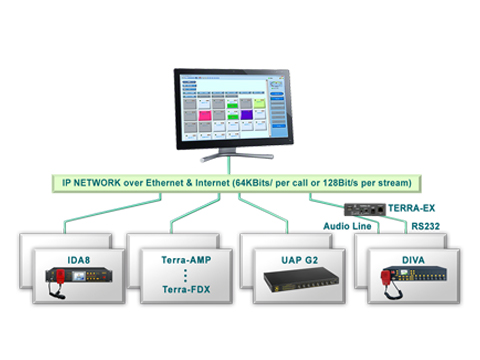

The TerraManager is an integrated control software, providing an GUI components to control and monitor the products from ATEÏS and TERRACOM such as IDA8, BOUTIQUE, EVCS, TERRACOM System etc.

The TerraManager can perform call-paging (Unicast/multicast/Broadcast), Full Duplex intercom, music streaming, background music, message playing, recording, event, bell scheduling, device I/O monitoring, parameter presets, Text-to-Speech, volume control (3rd party) and other numerous control functions. Meanwhile, the TerraManger can monitor all zones, list the logs/faults and display the status of the current paging sources.

  •  Support TCP, UDP, SIP, RTP and IGMP protocols
  • Support paging (Unicast/Multicast/Broadcast), full-duplex intercom, message playing
  • Zone button selections, including single zone, group zones
  • Multi language tool
  • 3rd party control via UDP, TCP and Modbus protocols
  • Configurable prerecorded audio sources for zone broadcasting and bell scheduler arrangement
  • Support Session Initiation Protocol (SIP)
  • Support Central Log function to record the real-time logs of IDA8/BOUTIQUE system


TerraManager system requirements

  • CPU: at least i5, recommend i7
  • Memory: at least 8GB RAM, recommend > 16 GB RAM
  • Hard-Disk: > 500 GB
    • Reserve 100GB for TerraManager application and log
  • 64-Bit OS: Windows 7 SP1/8.1/10
  • VGA card:
    • Basic requirement: any dedicated Graphics Card or Intel® Core™ i7-2600K CPU (or higher) shall require no dedicated Graphics Card
    • Recommend: Nvidia GeForce GT 730 (or higher) or the CPU has built-in Intel® HD Graphics 620 (or higher)
    • If the Image Zone button, Fault button or the Blinking Zone Effect function is using in TerraManager, please use the recommended VGA Card
  • Network Card
    • Network bandwidth: > 100Mbps


  • Stores
  • Offices
  • Industrial buildings
  • University campus / education institution
  • Airports
  • Train stations
  • Subways
  • Museums
  • Theme parks
  • Hotels
  • House of worship
  • ...
